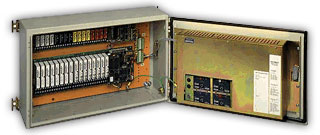

FEATURES

• Intelligent Microprocessor controller communicates with the Host Computer.
• The Power Module combines the logic and Loop supplies into a single easily-maintained unit.
• Removable plate makes field wiring easy.
• Control panel with test points and LED displays for ease of setup and maintenance.
• RS422/485 4-wire data link is ideal for distributed factory networks.
• Secure, waterproof enclosure with security key.
• Compatible with the world's most widely-used industrial software.
• Modular Opto-22 Digital and Analog I/O may be quickly configured with off-the-shelf components.
• Documentation panel.
• Comes complete with documentation and test software. It can be easily installed by electricians.

SPECIFICATIONS

	Optomate 1 32 I/O pnts	Optomate 2 64 I/O pnts	Optomate 3 96 I/O pnts	Optomate 4 144-192 I/O pnts
width	24.72" (630mm)	24.72" (630mm)	24.72" (630mm)	23.62" (600mm)
height	14.92" (380mm)	29.92" (760mm)	47.24" (1200mm)	70.87" (1800mm)
depth	8.26" (210mm)	8.26" (210mm)	11.81" (300mm)	15.75" (400mm)
mounting	wall mount	wall mount	wall mount	floor standing
body	16 ga (1.5mm)	16 ga (1.5mm)	16 ga (1.5mm)	16 ga (1.5mm)
door	15 ga (1.75mm)	14 ga (2.0mm)	14 ga (2.0mm)	14 ga (2.0mm)
mounting plate	12 ga (2.5mm)	11 ga (3.0mm)	11 ga (3.0mm)	-
protection catagory	Nema 4/12/13 (IP55)	Nema 4/12/13 (IP55)	Nema 4/12/13 (IP55)	Nema 4/12/13 (IP55)
Opto 22 I/O racks	2 single channel (Analog or Digital)	4 single channel (Analog or Digital)	6 single channel (Analog or Digital)	36 System units of rack space is available. Each 16 position Analog rack takes 4 system units and each 16 position Digital rack takes 3 system units.

OPTOMATE POWER MODULE QUICK SELECTION GUIDE
	Type 1	Type 2	Type 3
+5 VDC	3.0A, 6.0A	9.0A	18.0A
+/-15 VDC	-	0.8A, 1.5,A	5.0A
+24VDC or +48VDC	1.2A, 2.4A 0.5A, 1.0A	3.6A -	7.2A 4.0A
Instructions: Choose a maximum of two Type 1 and one Type 2 or one Type 1 and one Type 3 per power module.



DIGITAL I/O
AC Inputs:	12-32 VAC	DC Inputs:	4 - 16 VDC	Dry Contact:	100 VDC
	35-60 VAC		2.5 - 28 VDC
	90-140 VAC		10 - 32 VDC	Output:	130 VAC
	180-280 VAC		35 - 60 VDC
			90 - 140 VDC
AC Outputs:	12-140 VAC		180 - 280 VDC
	24-280 VAC
	24-280 VAC	DC Outputs:	5 - 60 VDC
(normally closed)			5 - 200 VDC

ANALOG INPUTS
Current:	2 - 4 mA	Thermocouple Input:	Type J
			Type K
Voltage Inputs:	0 - 5 Amp AC/DC		Type R/S
			Type T
Voltage Inputs:	0 - 5 VDC		Type E
	0 - 10 VDC
	-5 - +5 VDC	RTD Inputs:	100 Ohm Platinum
	-10 - +10 VDC		10 Ohm Copper
	0 - 50 mV
	0 - 100 mV	ICTD Input:	Opto 22 ICTD Temperature Probe
	28 - 140 VAC

ANALOG OUTPUTS
Current Outputs:	0 - 20 mA	Voltage Outputs:	0 - +5 VDC
	4 - 20 mA		0 - +10 VDC
			-5 - +5 VDC
			-10 - +10 VDC

RATE INPUT	LOCAL CONTROLLERS
Frequency 0 - 4095 Hz	Baby Blue III XT   Baby Blue III 386

POWER MODULES
Dimensions	21"(533mm) wide	Construction:	16 gage (1.5mm) C.R.S.
	3.5"(90mm) deep	Internal finish:	Yellow zinc dichromate plating
Mounting	Door or panel mount
