Panel Mount Computers

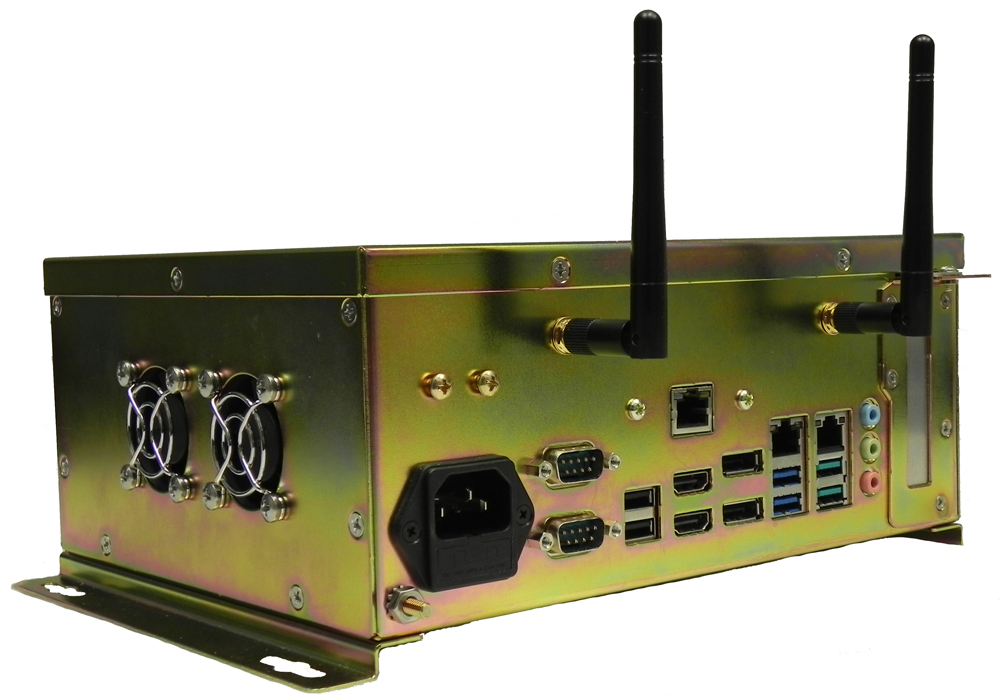

TR-ALDERLAKE-12 Compact Desktop/Panel Mount Computer with Intel 12th. Gen Processor

compact rugged panel pc

TR-ALDERLAKE-12 computer has been designed to offer high performance in a smaller chassis. The design is based on the 12th generation Intel i7-12800HE mobile processor with 14-cores and 20-threads. Operating range of temperature is 0-50°C (32-122°F), 60°C (140°F) for 2 hours. It can be used as desktop or panel mount with mounting brackets included.

The ITX industrial motherboard is based on Intel IRIS chipset with Xe graphics. DVI, Display Port and HDMI video ports.

The high speed 14-core processor in tandem with high performance chipset makes this computer useful for high resolution signage, radar, and sonar applications.

This computer has a PCIe x16 expansion slot that accepts 3/4" length low rise option card.

This computer can be supplied with one NVMe SSD or two (RAID1) 2.5" SATA hard drives or flash drives.

Power options include universal AC 50/60 Hz and DC power of 12, 24, 48, 125 and 250V. Maximum power consumption is 100W.

Two high quality ball bearing fans are used to remove hot air enveloped from internal components in the chassis. Speed of the air fans is monitored and controlled by motherboard.

TR-ALDERLAKE-12 computer is fully compatible with the Windows 11 and Windows 10 O/S. We also have legacy version compatible with the Windows XP O/S.

TR-ALDERLAKE-12 computer price starts at US $1650 for a basic model. Warranty is 3 years.

Download TR-ALDERLAKE-12 Specifications
