Panel Mount Computers

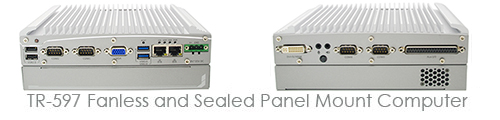

TR-597 Fanless and Sealed Panel Mount Computer

TR-597 Fanless and Sealed Panel Mount Computer

The TR-597 is designed for flexible application in any scenario. It's robust fanless design, compact size and optional PCI/PCIe expansion slot makes the TR-597 an ideal solution for video applications such as digital signs and industrial process control.

The embedded Intel Celeron Bay Trail J1900 2.0GHz processor provides reliable performance with very low heat generation and minimal cooling requirements, resulting in improved stability and longevity.

The TR-597 includes 1 x DVI-D, 1 x SVGA, 4 x COM, 1 x USB 3.0, 3 x USB 2.0, 1 x AUX and 2 x LAN network ports, up to 8GB DDR3 memory and 64GB high speed flash SATA drive. By providing both VGA and DVI-D video ports, the TR-597 provides increased flexibility for dual independent displays.

The enclosure is made of tough aluminum with heat dispersing fins to whisk away heat from the processor and allow the system to operate in harsh environments - from 0 ~ 70°C with full software load. Whether you need a system for digital signage, ATM, POS, or industrial PC, the TR-597 is built for the task.

Download TR-597 Specifications
