Transduction TR-SLD Non-Pivoting Solid Bearing Chassis Slide

The TR-RACK has been designed in response to the demand for low cost rack mount cabinets from clients who build rack mount servers.

More info here

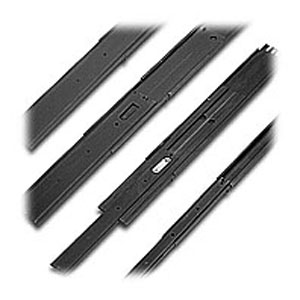

TR-SLD

Non-Pivoting Solid Bearing Chassis Slide in 18" and 24" Length, up to 30" with optional extender.

TR-SLD Chassis Slide Features:

Rugged, dependable, cost-effective solid bearing slides
Sold in sets of 2
Designed to lock in the extended position
Made from cold rolled steel and coated with dry film lubricant
Quick disconnect feature permits the entire chassis to be removed easily and replaced
All mounting hardware included

TR-SLD Ordering Information:

TR-SLD-18	Chassis Slides 18", Load up to 90 lbs Download the TR-SLD-18 Mechanical Dimensional Drawing
TR-SLD-18-1U	1U Chassis Slides 18", Load up to 90 lbs Download the TR-SLD-18-1U Mechanical Dimensional Drawing
TR-SLD-24	Chassis Slides 24", Load up to 85 lbs Download the TR-SLD-24 Mechanical Dimensional Drawing
TR-SLD-6	Extender 6" Download the TR-SLD-6 Mechanical Dimensional Drawing
