TR-CDROM Peripheral
For GLORIA, BERTA or Any Rack
Mount Server Industrial Computer
Designed to meet tough UL/CSA/TUV, FCC and EMI specifications. CE compliant.
Most Reliable Industrial PC
Peripheral For 19 Inch Rack
Mount
Choice of 5.25 inch half or full height CD-ROMs, Hard Drives or Tapes mounted in horizontal position. Up to 6 half-height or 2 full height drives or mix of both.
Provision for industry standard SCSI-II or Wide-SCSI cables and connectors.
Black baked epoxy painted front panel 7" (4U) high with replaceable drive covers to accommodate 1, 2 and 3 drives.
High quality rack mount design with excellent EMI characteristics. Yellow zinc plated chassis made of cold rolled steel. Only 17-inch deep for easy fit in the 24-inch telecom cabinets.
Mounting holes for industry standard 24-inch or 30-inch long chassis slides.
Choice of PS2 style AC 110/220V power supplies: 300W single, 250W dual redundant or 400W single with separately regulated 5V and 12V sections.
Optional PS/2 style 250W DC power supplies: 24VDC or 48VDC.
Cable clamp to secure HP style power cord connector to prevent accidental removal when pulling the chassis out of the rack.
Two high efficiency 43CFM air fans for high pressure air flow. All air fans including PS2 style power supplies have ball bearings for longer MTBF.
Chassis designed for easy access with only one Phillips screwdriver. Precision made by our own CAD-CAM high volume AMADA robotics shop.
2 years parts and labour warranty.
Save Time, Expand Your
Server With More Drives

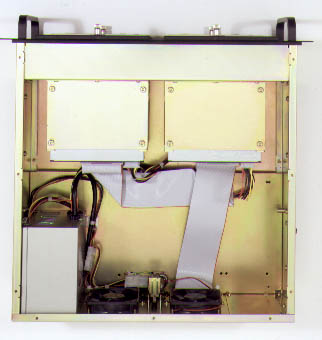

TR-CDROM chassis offers an easy expansion of any rack mount server. It has been designed to accommodate up to six 5.25-inch or 3.5-inch drives mounted in horizontal position, which is preferred for installation of the CD-ROMs, CD-Recorders and some Tape drives. It saves operator's time by eliminating the need for frequent changes of tapes or CD-ROMs on the server. It has provision for up to 4 SCSI-II or Wide-SCSI external connectors. Up to 4 servers can connect to individual drives inside this enclosure.
TR-CDROM storage chassis can be supplied with or without drives. When supplied with the drives, the subsystem is fully wired and tested to customer specifications. Call Transduction for a current pricing of the CD-ROMs, Tapes, Hard Drives and CD-Recorders.
General Specifications:
Chassis dimensions HWD: 7" (4U), 17", 17"
Shipping carton HWD: 11.25, 23.12", 30.25" (350# with foam inserts)
Shipping Weight: 30 lbs.
Ordering Information:
TR-CDROM peripheral chassis with 2 drive covers (must specify) for 1, 2 or 3 half height peripherals with standard 300W 110/220V AC PS2 power supply and HP style power cord.
Additional drive cover for 1, 2 or 3 half height peripherals
Optional drives: CD-ROM, CD-ROM Recorder, Tape, Hard Drive
Optional adaptive temperature controller for 2 air fans with audible alarm
Optional 2X250W dual redundant PS2 110/220 VAC power supply.
Optional 400W 110/220 VAC PS2 power supply with separately regulated 5VDC and 12VDC circuits.
