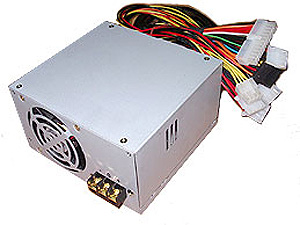

48 VDC INPUT 350W PS2 STYLE ATX 2.01 POWER SUPPLY

48 VDC INPUT 350W PS2 STYLE ATX 2.01 POWER SUPPLY
48 VDC INPUT 350W PS2 STYLE ATX 2.01 POWER SUPPLY

INPUT CHARACTERISTICS:

Input Connector Type: 25A/300V UL approved 3-pin terminal

Input Connection: Make sure plug power source according to the label instruction.

Input Current: 6.3A/ 12.5A(350W) @ Full load high line and low line

Inrush Current: Less than 15A cold start @ 25°C ambient



OUTPUT CHARACTERISTICS:

48 VDC INPUT 350W PS2 STYLE ATX 2.01 POWER SUPPLY


OVERALL PERFORMANCE:

Efficiency: 70% typical @ 48VDC full load

Power Good Signal: TTL compatible signal, on delay 100~500ms, off delay 1ms min.

Short Circuit Protection (SCP): All outputs equipped with SCP (shutdown and latch off)

Over Power Protection (OPP): Peak power protected to 130%±10% of continuous rated power (shutdown and latch off)

Over Voltage Protection (OVP): +5V, +12V & +3.3V



ENVIRONMENTAL SPECIFICATIONS:

Cooling: Forced air-cooling, 80x80x25 mm fan x 1(with two ball bearings)

Operating Temperature: 0°C~+50°C, +60°C at half power

Operating Humidity: 20%~85% RH (non-condensing)

Storage Temperature: -20°C~+80°C

Storage Humidity: 10%~90% RH (non-condensing)

Operating Altitude: 10M below sea level to 3000M above sea level



RELIABILITY:

MTBF: >75,000 hours @ max. load, 48VDC & 25°C ambient

Safety Standards: Meet UL60950, TuV EN60950

EMI Compatibility (EMC): FCC Part 15 Class B, CISPR22 (EN55022) Class B (CE mark)

Dielectric Isolation: Input to output: 1000VDC for 1 second, Input to frame ground 1000VDC for 1 second

Leakage Current: 0.005uA @ 48VDC



OUTPUT CONNECTOR SPECIFICATIONS:

ATX 24 Pins x 1 Molex 39-01-2240 or equivalent

+12V(P4) 4Pins x 1 Molex 39-01-2040 or equivalent

HDD, DVD 4Pins x 8 Molex 8981-04P or equivalent

FDD 4Pins x 1 AMP 171822-4 or equivalent

Serial ATA x 2 Molex 675820000 or equivalent

Process 8Pins x 1 Molex 39-01-2080 or equivalent



STANDARD OUTPUT CABLE LENGTH:

530mm or 20.87 inches



ENCLOSURE DIMENSIONS:

140(L) x 150(W) x 86(H) mm

5.51(L) x 5.9(W) x 3.39(H) inches



NET WEIGHT:

2~2.3KG

4.4~5.07LB
