The TR-RACK has been designed in response to the demand for low cost rack mount cabinets from clients who build rack mount servers.

More info here

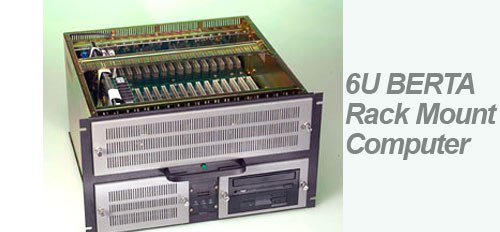

6U BERTA RACK MOUNT COMPUTER

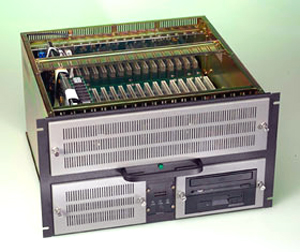

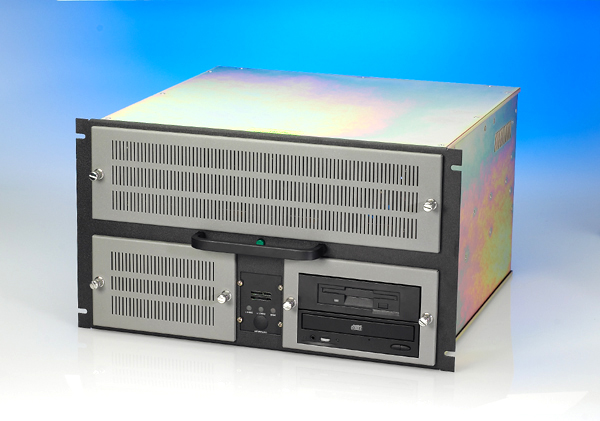

6U BERTA Rack Mount Computer

Click on photo for expanded image

Download the Berta Mechanical Dimensional Drawing

6U Berta is the most reliable and practical 20-slot industrial computer for 19" racks. It has Air Chamber (C) optimized air flow and built-in temperature control for longer life of your system. The high quality chassis is precision designed and manufactured with CAD-CAM robotics in our own Metal Shop. We have total control of air flow, electrical and EMI protection. This chassis has been a long time favorite of many telephone system integrators, digital imaging OEM's and militaries who use high speed DSP type I/O cards. It has capacity for up to 20 ISA and/or PCI backplane slots.
Rack Mount Chassis
  • Front panel with cover plates or optional front door with a slotted lock for easy access

  • BERTA chassis can be supplied with a 20 slots passive or active backplane or motherboard that supports up to 4 Intel Xeon processors

  • High quality, solid steel chassis that is resistant to corrosion and vibration

  • Clear zinc steel finish or yellow dichromate (standard) with front panel that is coated with scratch resistant epoxy

  • Heavy duty front panel mounted handles

  • Excellent air flow with Adaptive Temperature controller on 4 NIDEC 43 or 62 CFM ball bearing fans mounted on Air Chamber (C) controller. Additional 43 CFM NIDEC fan in the power supply/drive compartment.

  • Adaptive Temperature controller and Air Chamber provide for lower acoustical noise and less dust in the computer

  • Optional air filter that can be easily replaced

  • Indicators: ON/OFF switch, +5, +12, HD LED indicators and speaker

  • It has room for 4 front panel full size 5.25" drives, and up to 7 internal 3.5" drives. Front size drives can be supplied in hot swap AL canister.

  • Comes with variety of standard PS/2 type AC or DC ATX + 300W to 800W power supplies and dual and quad hot swap power supplies with high quality NIDEC fans

  • Precision designed and manufactured in our own robotics CAD-CAM shop

  • Only one Philips screwdriver needed for access and maintenance

  • This chassis can easily be changed to suit your requirements. Standard front panel color is scratch and corrosion resistant epoxy black - custom colors are also available

  • Excellent EMI protection to meet FCC class B, has C-UL and CD approved power supplies. Each chassis has C-UL electrical safety approval sticker

  • Operating temperature 0° to 60°C

  • 2 years warranty

  • Always in stock

Similar products with different features:

Berta X computer

Berta 1000 computer
