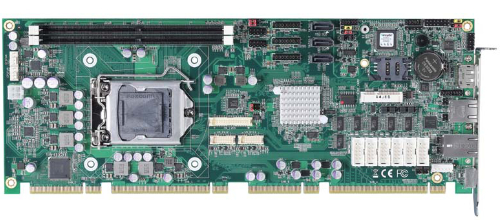

TR-A79 PICMG 1.3 single board computer is designed for Intel Socket 1151, 9th generation i5 6-core processors. It is equipped with Intel long term supply Q370 chipset that provides superior performance and reliability. It works with popular PICMG 1.3 "graphics" type backplanes that have PCI and PCIe option slots.
TR-A79 comes with Intel Q370 PCH integrated UHD Graphics for enhanced video performance, 2 x DVI, 1 x DisplayPort, 1 x VGA, 24-bit dual channel LVDS, dual Gigabit LAN, 6 x USB 3.0, 4 x USB 2.0, 6 x COM, 3 x SATA III, 1 x GPIO, 1 x TPM 2.0 and 1 x mSATA slot via SATA3. The TR-A79 supports dual channel DDR4-2666MHz (non-ECC) memory up to 32GB.
The TR-A79 provides excellent flexibility for industrial applications by offering outstanding graphics and I/O bandwidth, storage speed, reliability and long term supply.
The TR-A79 can be supplied with any of our rack or panel mount chassis and backplane that you need. When supplied as part of the complete computer system from Transduction, the warranty is 3 years + 10% initial cost for 5 years. Expected longevity of supply is until 2032.
