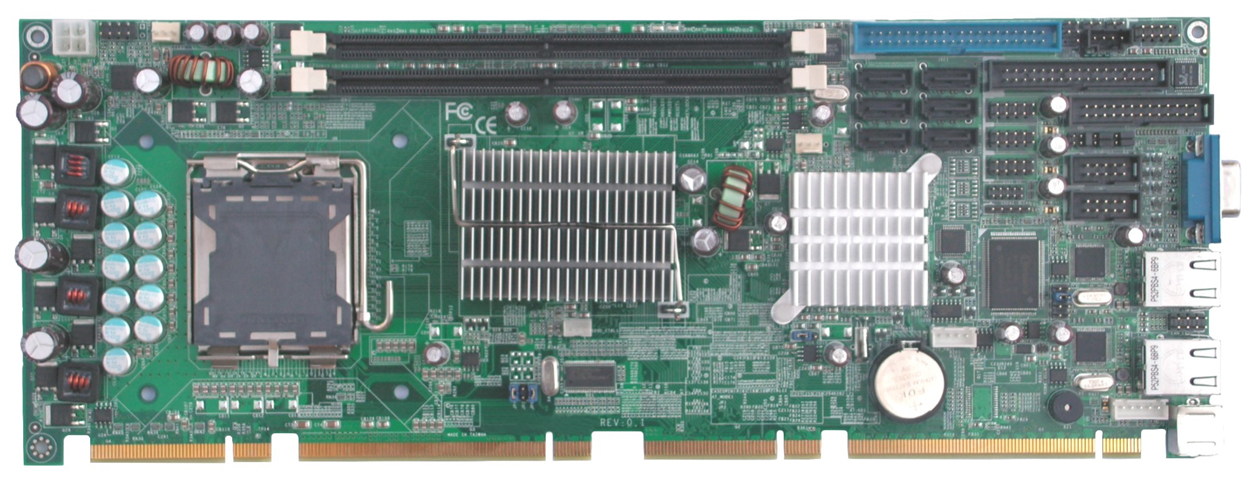

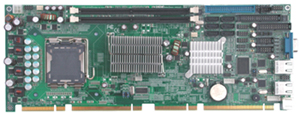

TR-995 PICMG 1.3 single board computer is designed for Intel Socket 1151, 8th/9th generation i5 6-core and i7 8-core processors. It is equipped with Intel long term supply Q370 chipset that provides superior performance and reliability. It works with popular PICMG 1.3 "graphics" type backplanes that have PCI and PCIe option slots.
TR-995 comes with Intel Q370 PCH integrated UHD P630 Graphics for enhanced video performance, 1 x DVI-D, 1 x DVI-I, 24-bit dual channel LVDS, dual gigabit LAN, 5 x USB 3.0, 3 x USB 2.0, 4 x COM, 3 x SATA, 1 x DIO, 1 x TPM 2.0, 1 x M.2 supports NVMe and 1 x M.2 supports CNVi. The TR-995 supports dual channel DDR4-2400/2166MHz (ECC compatible) memory up to 32GB.
The TR-995 provides excellent flexibility for industrial applications by offering outstanding graphics and I/O bandwidth, storage speed, reliability and long term supply.
The TR-995 can be supplied with any of our rack or panel mount chassis and backplane that you need. When supplied as part of the complete computer system from Transduction, the warranty is 3 years + 10% initial cost for 5 years. Expected longevity of supply is until 2032.
Download TR-995 Specifications
