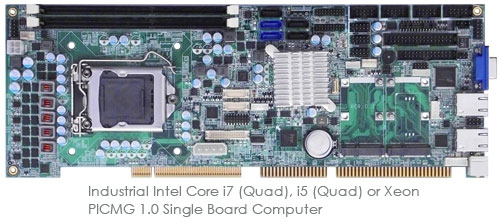

The new TR-981 PICMG 1.0 full-size SBC supporting Intel’s latest generation Core i7, Core i5 and Xeon processors on the boards LGA 1155 socket. All of these processors come integrated with high-performance graphics processing unit that works with the the boards video outputs including VGA CRT, DVI/HDMI and 24-bit dual channel LVDS interface.
Incorporating the Intel B75 chipset, TR-981 supports CPU clock speeds up to 3.4GHz,. It provides new levels of performance and capabilities designed for increasingly demanding applications in the medical, industrial automation, power utilities and nuclear industry.
TR-981 comes with two DDR3 DIMM sockets on board allowing up to 16GB of system memory. High speed I/O connectivity is provided by 4 USB 3.0, 6 USB 2.0, 4 SATA II ports, 2 SATA III ports, 4 serial ports, a printer port and dual Gigabit LAN ports. This platform also has 2 Mini PCI-E expansion sockets.
The TR-981 can be supplied with any of our rack or panel mount chassis and backplane that you need. When supplied as part of the complete computer system from Transduction, the warranty is 3 years + 10% initial cost for 5 years. Expected longevity of supply is 5 to 7 years.
