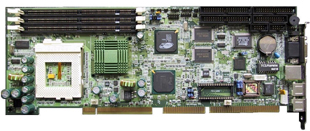

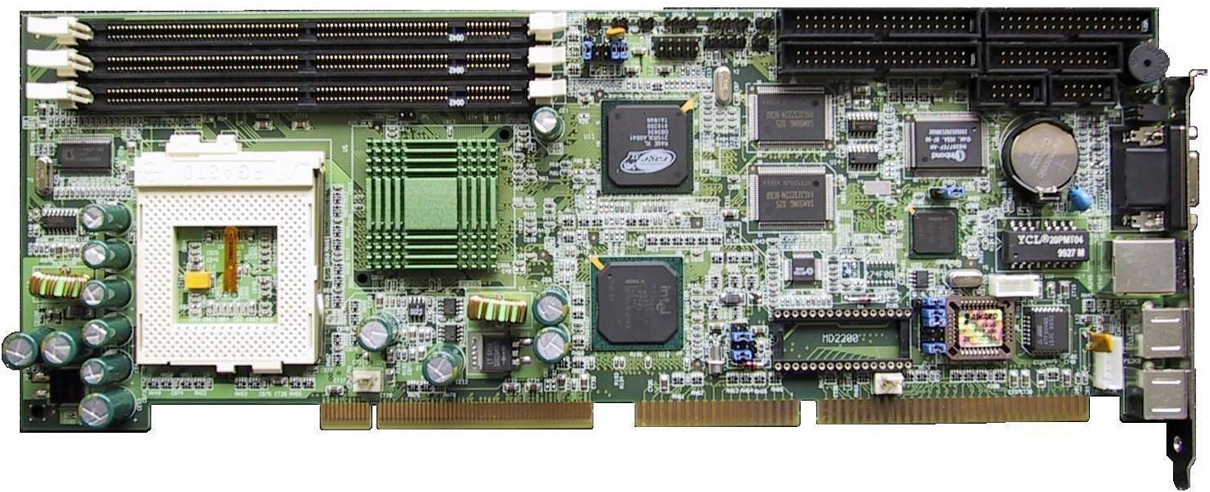

The pentium single board computer TR-950 is designed for Intel Socket 370 and is compatible with low-profile Intel PPGA package Celeron processor as well as Intel FC-PGA package Pentium III processor. The TR-950 accommodates up to 384MB of un-registered SDRAM or 768MB of registered SDRAM configuration.
The TR-950 is a high integration design. Intel's 82559 10/100 Base-T Fast Ethernet Controller and ATI RAGEXL 2X AGP VGA controller are integrated into the system. The high-integration design prevents system compatibility issues and increases the PCI add-on cards scalability.
The TR-950 comes with Winbond's W83782 hardware monitoring device that monitors system and CPU temperature, system voltages, and CPU fan speeds to prevent system crashes by warning the user of adverted conditions. The power management feature provides power savings by slowing down the CPU clock, turning off the monitor screen and stopping the HDD spindle motor.
The TR-950 is an ideal replacement single board computer for systems that need slower processors. Warranty is 3 years or 5 years +10% initial cost. Call Transduction for more information.
Download TR-950 Specifications
Download TR-950 User Manual
