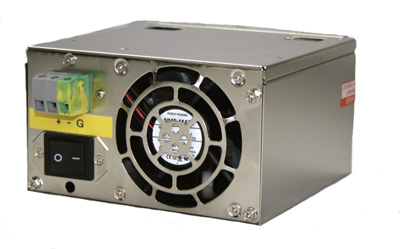

250VDC INPUT 300W PS2 STYLE ATX 2.03 POWER SUPPLY

250VDC INPUT 300W PS2 STYLE ATX 2.03 POWER SUPPLY
250VDC INPUT 300W PS2 STYLE ATX 2.03 POWER SUPPLY

INPUT CHARACTERISTICS:

Input Connector Type: ATX 2.03, ATX 12V(P4), EPS 12V, WTX, AMDGES

Input Connection: Make sure plug power source according to the label instruction.

Input Current: 6/7/8.0A for 250VDC

Inrush Current: 125A max. for 250VDC



OUTPUT CHARACTERISTICS:

250VDC INPUT 300W PS2 STYLE ATX 2.03 POWER SUPPLY


OVERALL PERFORMANCE:

Efficiency: 68% typical @ 250VDC full load

Power Good Signal: On delay 100ms~500ms, off delay 1ms

Short Circuit Protection (SCP): +5V, -5V, +12V, -12V, +3.3V

Over Power Protection (OPP): Peak power protected to 130%±20% of continuous rated power (shutdown and latch off)

Over Voltage Protection (OVP): +5V: 5.7V~6.5V, +3.3V: 3.9V~4.3V, +12V: 13.6V~15V



ENVIRONMENTAL SPECIFICATIONS:

Cooling: One 80mm DC fan with ball bearing

Operating Temperature: 0°C~+50°C, +60°C at half power

Operating Humidity: 20%~95% RH (non-condensing)

Storage Temperature: -10°C~+70°C

Storage Humidity: 10%~90% RH (non-condensing)



RELIABILITY:

MTBF: >75,000 hours @ max. load & 25°C ambient

Safety Standards: Meet UL1950, CSA 22.2NO/950, TUV IEC 950

EMI Compatibility (EMC): (EMC): FCC Part 15 Class B, CISPR22 (EN55022) Class B (CE mark)

Dielectric Isolation: Input to output: 1500VAC for 1 second, Input to frame ground 1500VAC for 1 second





STANDARD OUTPUT CABLE LENGTH:

530mm or 20.87 inches



ENCLOSURE DIMENSIONS:

140(L) x 150(W) x 86(H) mm

5.51(L) x 5.9(W) x 3.39(H) inches



NET WEIGHT:

2~2.3KG

4.4~5.07LB
