Single Board Computers

Industrial SBC with Intel Core i7 or i5 up to 3.8GHz PICMG 1.3 Single Board Computer

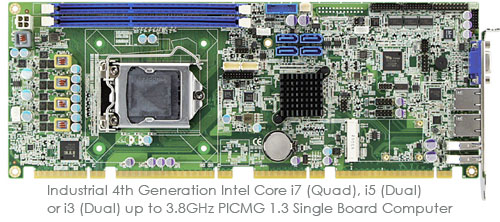

Industrial 4th Generation Intel Core i7 (Quad), i5 (Dual) or i3 (Dual) up to 3.8GHz PICMG 1.3 Single Board Computer

The new TR-1004 PICMG 1.3 full-size SBC supporting Intel’s 4th generation Core i7, Core i5 and Core i3 processors on the boards LGA 1150 socket. All of these processors come integrated with high-performance graphics processing unit that works with the the boards video outputs including VGA CRT, DVI-D and 24-bit dual channel LVDS interface.

Incorporating the Intel Q87 chipset, TR-1004 supports CPU clock speeds up to 3.8GHz and HyperThreading. It provides new levels of performance and capabilities designed for increasingly demanding applications in the medical, industrial automation, power utilities and nuclear industry.

TR-1004 comes with two DDR3 DIMM sockets on board allowing up to 16GB of system memory. High speed I/O connectivity is provided by 4 USB 3.0, 4 USB 2.0, 4 SATA III ports, 4 serial ports dual Gigabit LAN ports. This platform also has a Mini PCI-E expansion socket.

The TR-1004 can be supplied with any of our rack or panel mount chassis and backplane that you need. When supplied as part of the complete computer system from Transduction, the warranty is 3 years + 10% initial cost for 5 years. Expected longevity of supply is 5+ years.

Note: This SBC is compatible with all new versions of Windows but is not compatible with Windows XP. We have other SBC's, panel and rack mount computers that are compatible with older versions of Windows and other operating systems.

Download TR-1004 Specifications

Download TR-1004 User Manual
