Panel Mount Computers

TR-800 Highly Reliable Small Industrial Computer With 3 Year Warranty

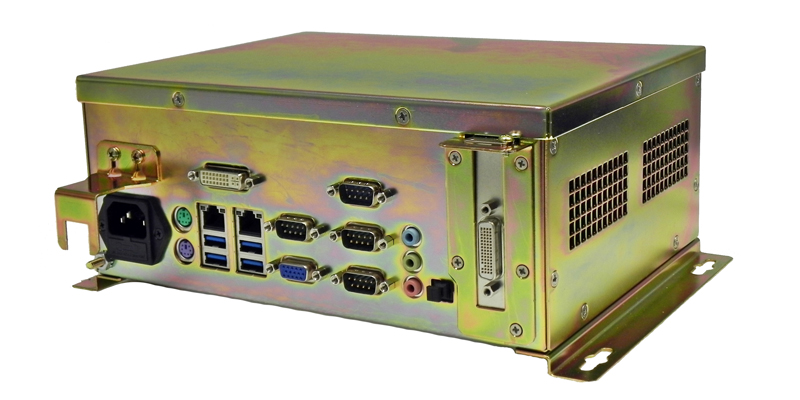

TR-800 Highly Reliable Small Rugged Industrial Computer

Model TR-800 has been designed to provide many years of trouble-free operation. It can be used as panel mount with brackets or as a desktop with rubber feet.

Powered by Intel Core series processors, this small computer offers performance and versatility for many unique applications. Highly reliable internal 100W power supply has fused 12VDC/3A connection that is available for external monitor or any additional equipment. Power options include universal AC, 24VDC, 48VDC, 110VDC, 125VDC and 250VDC.

Operating range of temperature is 0 to 60°C. Cooling is provided by two ball bearing fans that operate at low speed and recirculate air in the enclosed metal cabinets. Physical dimensions are 9.6"(W) x 7.375"(D) x 3.9"(H). Weight is 8.15 lbs.

TR-800 computer has optional PCIe expansion slot for low profile PCIe short cards. Expansion possibilites include additional USB or ethernet ports, fiber adapter, serial ports including RS422/485, parallel port, advanced graphic card, 4 monitors graphic card, video input card, analog and digital I/O card and wireless adapters. Call us for more options.

High reliability of the TR-800 computer is assured by use of selected industrial ITX type motherboards and power supply with MTBF of over 150,000 operating hours. Industrial temperature flash drives are used with optional Super Cap feature. Warranty is 3 years.

Software compatibility includes Microsoft Windows XP and Windows 10 depending on configuration.

TR-800 computer is readily available from stock. Price starts at US $1200 for a basic configuration.
