Rack Mount Computers

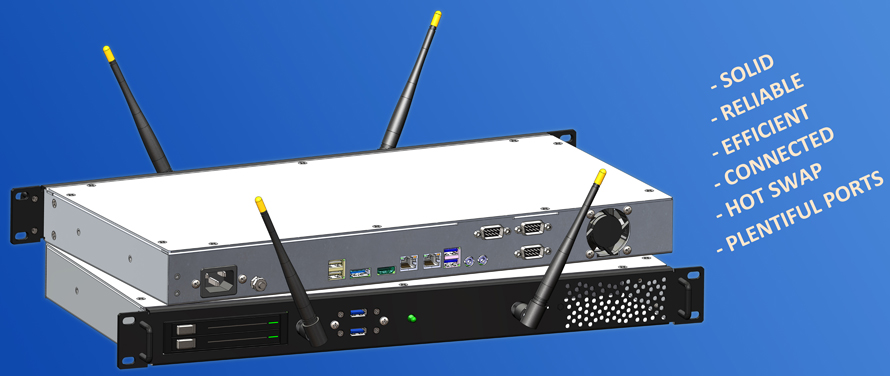

TR-W11-RM Reliable 1U Rack Mount Computer Powered by Intel 11th Gen. 4-Core CPU for Windows 10 and 11

TR-W11-RM Half Fanless Industrial Rack Mount Computer Powered by Intel 11th Gen. CPU with Mini ITX Motherboard

TR-W11-RM computer has been designed to provide reliable long-term service in industrial applications. Highly efficient Intel Elkhart Lake chipset offers high performance computing along with Intel Pentium Quad Core N6415 processor. Overall power consumption is only 10W to reduce heat load of the rack mount cabinets.

This computer includes fanless industrial quality motherboard with ceramic capacitors. Cooling is provided by gentle transverse air flow is provided by one inch ball bearing fan. Speed of the air fan is controlled by the motherboard along with monitoring of temperature and voltages on the motherboard.

TR-W11-RM computer is normally supplied with premium solid state flash drive with POWERGUARD feature that prevents creation of bad blocks in case of sudden loss of power.

Wireless access is optional with front panel antennas. It is based on internal Intel AC 9260 high performance wireless (dual band 2.4GHz & 5 GHz) module.

Security features include popular AMI BIOS and optional TPM 2.0 chip to protect data on the drive.

This computer can be powered from 120VAC or optional 12VDC, 24VDC, 48VDC, 125VDC and 250VDC.

Price of the basic configuration with universal AC power supply is only US $375 plus desired size of memory and flash drive. Warranty is 3 years.

Download TR-W11-RM Specifications

Download TR-W11-RM Mechanical Drawings
