Active & Passive Backplanes

Backplanes For 20-Slot Indstrial Computer Chassis

PCIe 3.0 Backplane

TR-18PCIE PICMG 1.3 Eighteen PCIe 3.0 Backplane

2 x8 PCI Express 3.0 electrical / x16 mechanical connectors and 16 x4 PCI Express 3.0 electrical / x16 mechanical connectors

Graphics Class Backplane

TR-8194 PICMG 1.3 Graphics Class Backplane

8 x16 PCI Express Slots and 5 x4 PCI Express Slots

Graphics Class Backplane

TR-8032 PICMG 1.3 Graphics Class Backplane

17 x16 PCI Express Slots and 1 x4 PCI Express Slots

Multiple SHB Segments Backplane

TR-2S6929 PICMG 1.3 Multiple SHB Segments Backplane

2 SHB Slots, 3 x8 PCI Express Slots and 4 PCI-X Slots (per SHB segment)

Multiple SHB Segments Backplane

TR-4FS6890 PICMG 1.3 Multiple SHB Segments Backplane

4 SHB Slots, 2 x8 PCI Express Slots and 1 x4 PCI Express Slot (per SHB segment)

Multiple SHB Segments Backplane

TR-6605 PICMG 1.3 Multiple SHB Segments Backplane

6 SHB Slots, 6 x16 PCI Express Slots and 3 x8 PCI Express Slots

Server Class Backplane

TR-3/14 PICMG 1.3 Server Class Backplane

2 x4 PCI Express Slots, 1 PCI Express Expansion Slot and 14 PCI-X Slots

Server Class Backplane

TR-6806 PICMG 1.3 Server Class Backplane

4 x8 and 14 x4 PCI Express Slots and 1 PCI Express Expansion Slot

Graphics Class 64-bit Backplane

TR-3/16-64 PICMG 1.0 Graphics Class 64-bit Backplane

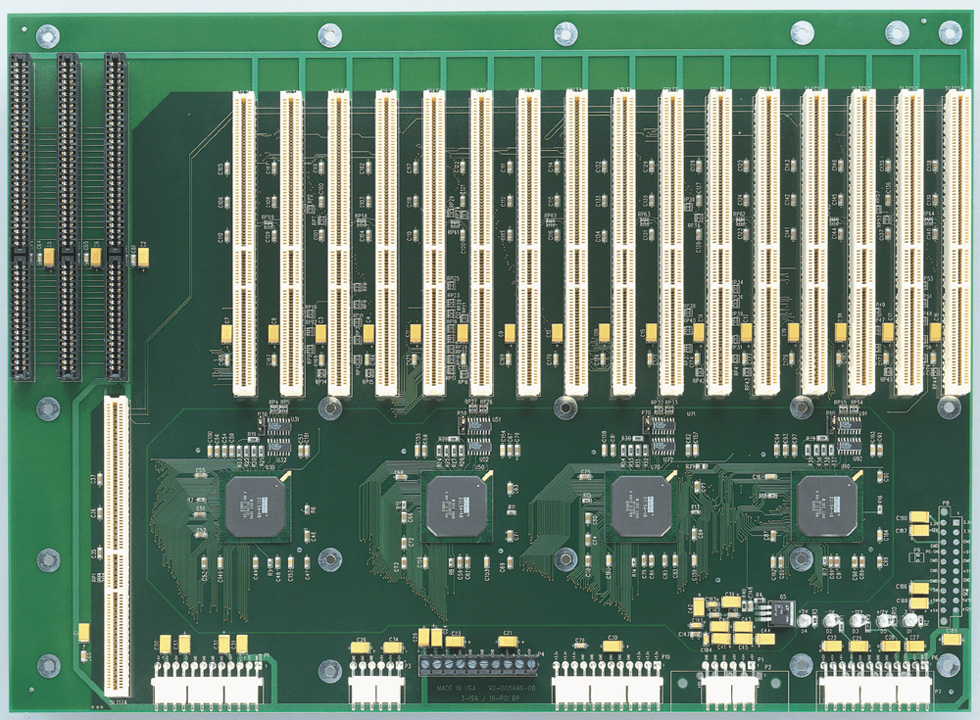

19-slot (3 ISA, 16x64-bit/33MHz PCI) Active Backplane

Server Class Backplane

TR-BPX6571 PICMG 1.3 Server Class Backplane

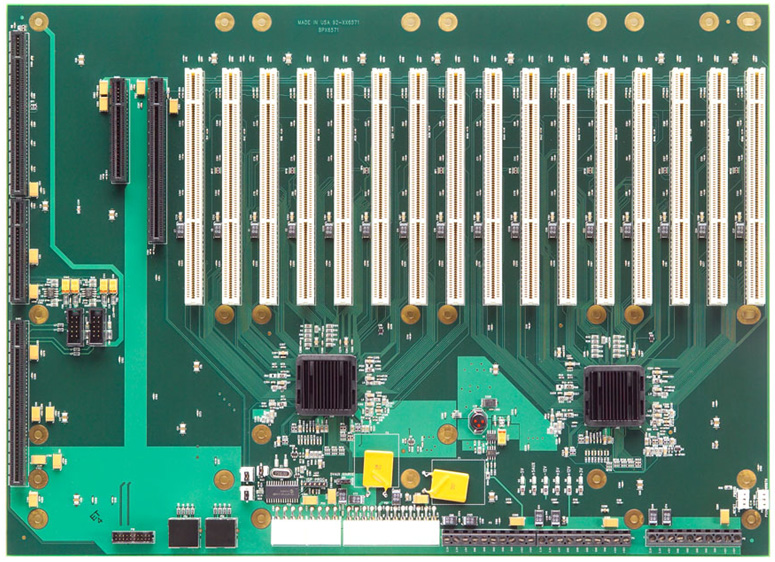

1 x8 and 1 x4 PCI Express Slot, and 16 PCI-X Slots

19-slot Active Backplane

TR-13/2/4-66

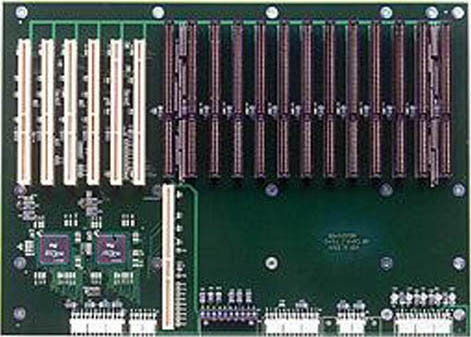

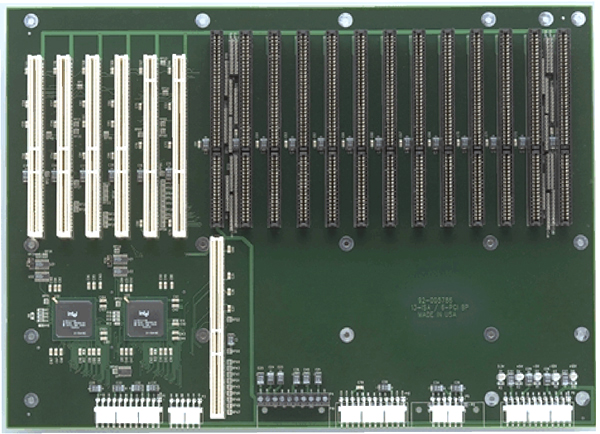

19-slot (13 ISA, 2x64-bit/66MHz PCI, 4x64-bit/33MHz PCI) Active Backplane

20-slot ISA Passive Backplane

TR-20ISA

20-slot ISA Passive Backplane

18-slot Active Backplane

TR-18AH

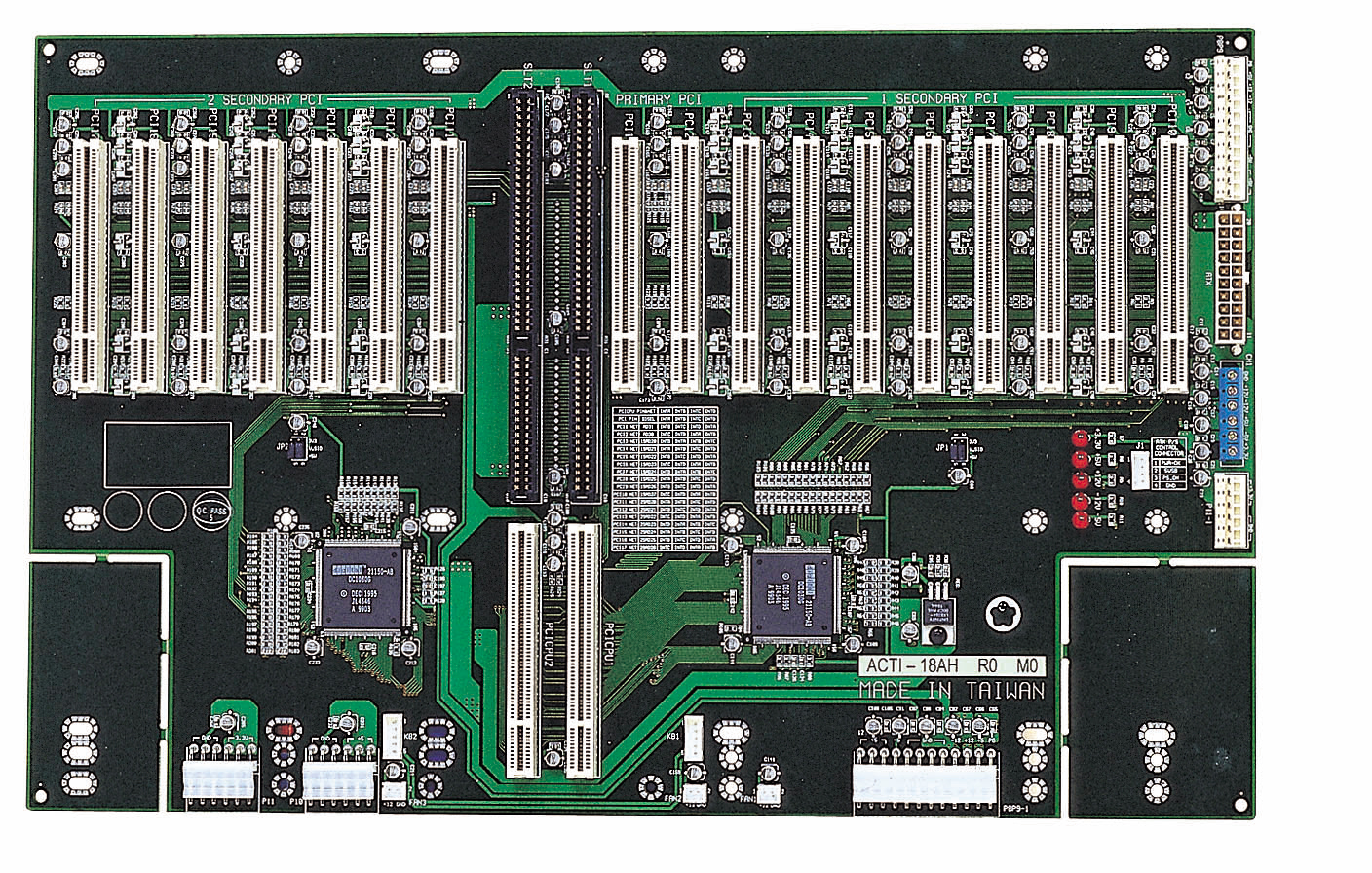

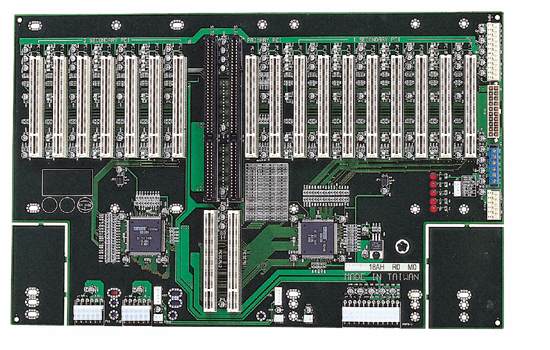

18-slot (17 PCI) Active Backplane

19-slot Active Backplane

TR-19AI

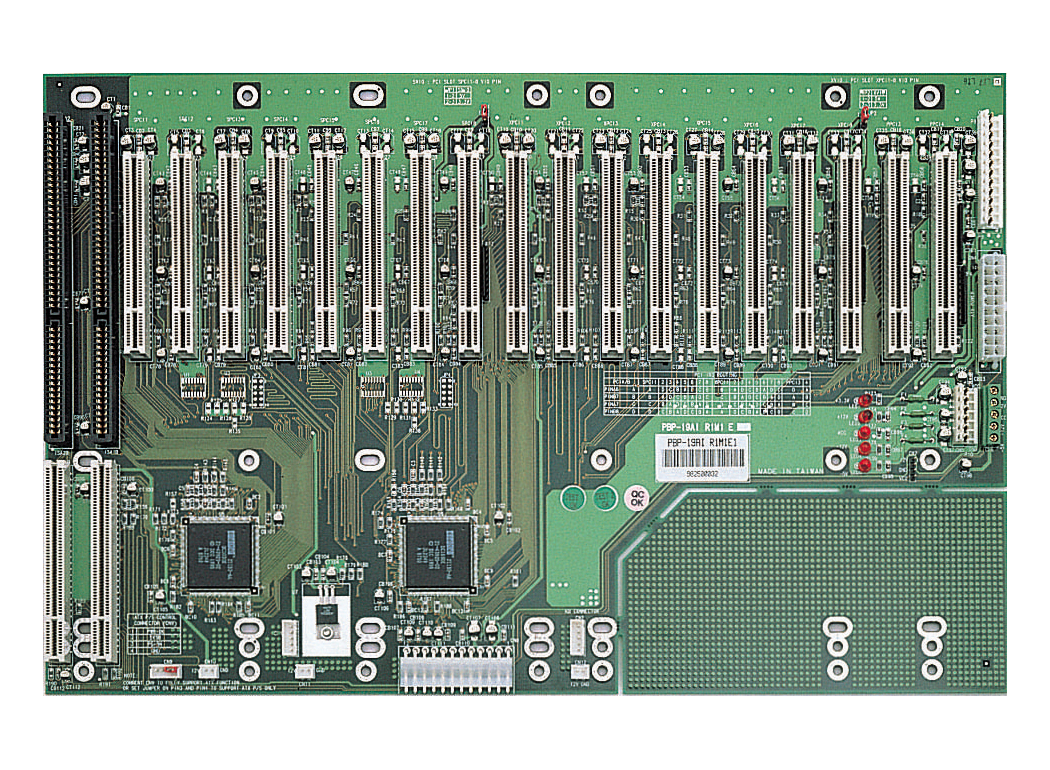

19-slot (18 PCI) Active Backplane

Note: In addition to backplanes listed here, Transduction also has many special OEM designs readily available off the shelf. Please contact our Sales Department for details.
