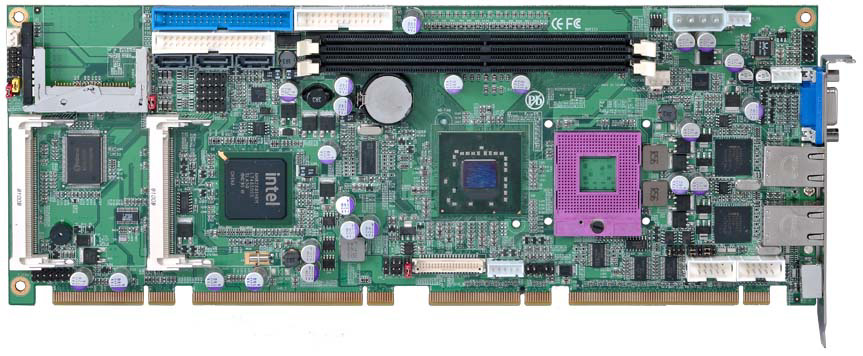

TR-990 Core 2 Duo PICMG 1.3
Single Board Computer Click on photo
for expanded image
The TR-990 has been
designed for reliable
operation in industrial
system applications.
It incorporates an Intel
Socket P pin-out
compatible with Intel
Core 2 Duo Merom
processors at 533/800MHz
FSB.
The board integrates GME965 Express and
ICH8-M Chipset, to
provide new standard of
performance.
The TR-990 provides
excellent flexibility
for development of
embedded applications by
offering outstanding
graphics and I/O
bandwidth,
storage speed and
reliability.
The TR-990 comes with
Floppy, PS/2 Keyboard
and Mouse, 1 x RS232 and
1 x RS232/422/485.
Networking is provided
by Intel 2 x 82573L PCI-Express
Gigabit LAN, 6 x USB 2.0
ports. The TR-990
supports High Definition
Audio enabling increased
bandwidth for high
quality audio and
support for Dolby
Technology. It
also provides flexible
extension interface with
Compact Flash Type II
slot, 2 x mini-PCI
slots.
The OEM price of this
SBC is at quantity 100
only $325. When
purchasing the board
only, warranty is 1
year, as part of a
complete system,
warranty is 3 years.
