Intel Processor Socket 775

Industrial Intel Core 2 Duo And Core 2 Quad PICMG 1.0 Single Board Computer

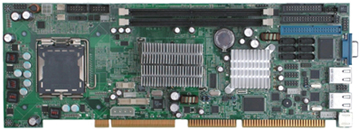

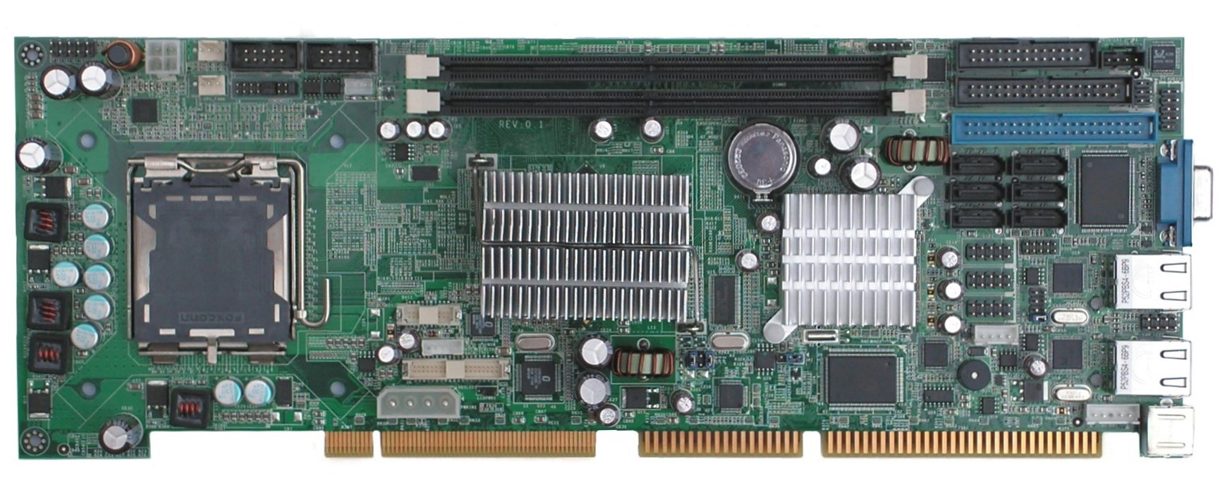

Click on photo for expanded image

Download TR-980 Specifications

Download TR-980 User Manual

TR-980 single board computer is designed for Intel Socket 775, Intel Core 2 Quad, Core 2 Duo and Celeron D 800/1066/1333MHz FSB processor and is compatible with all PICMG 1.0 type passive and active backplanes. The board integrates Intel Q35 and ICH9DO chipset to provide new standard of performance.  It is a perfect board to upgrade existing PICMG 1.0 computer systems.

TR-980 comes with Dual Gigabits LAN, 6 x USB 2.0, 2 x COM, 6 x SATA, IRDA, 1 x PIDE, 1 x LPT  and 1 X FDD.  The TR-980 supports High Definition Audio enabling increased bandwidth for high quality audio and support for Dolby Technology.  It includes multiple display capabilities CRT, DVI, Dual 24-bits LVDS LCD.

TR-980 is fully compatible with all Windows operating systems, including Windows NT. This SBC is also compatible with LINUX and current version of QNX.

Actual MTBF of the TR-980 SBC, based on our service records is in excess of 100,000 hours. The warranty is 3 years.

The TR-980 SBC can be supplied with any of our rack or panel mount chassis and backplane that you need. When supplied as part of the complete computer system from Transduction, the warranty is 3 years + 10% initial cost for 5 years.


Similar Products: TR-979 Industrial Single Board PICMG 1.0 Computer.
