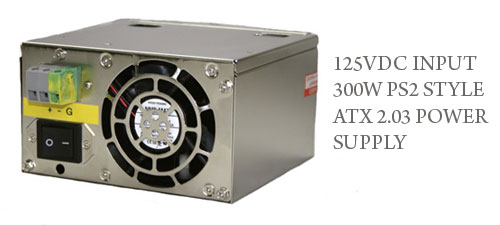

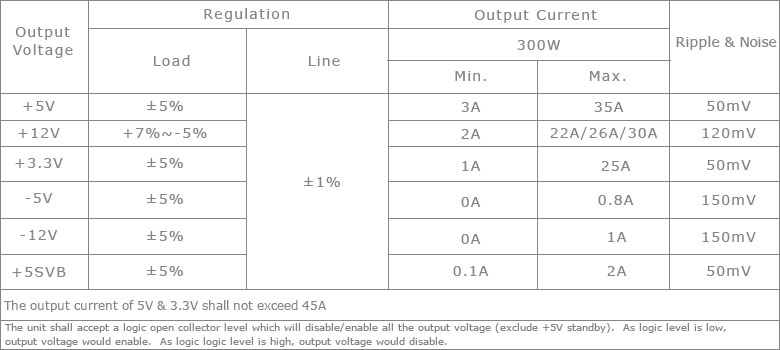

OUTPUT
CHARACTERISTICS:
|
Output Voltage |
Regulation |
Output Current |
Ripple & Noise |
|
Load |
Line |
300W |
|
Min. |
Max. |
|
+5V |
±5% |
±1% |
3A |
35A |
50mV |
|
+12V |
+7%~-5% |
2A |
22A/26A/30A |
120mV |
|
+3.3V |
±5% |
1A |
25A |
50mV |
|
-5V |
±5% |
0A |
0.8A |
150mV |
|
-12V |
±5% |
0A |
1A |
150mV |
|
+5SVB |
±5% |
0.1A |
2A |
50mV |
|
The output current of 5V
& 3.3V shall not exceed
45A |
|
The unit shall accept a
logic open collector
level which will
disable/enable all the
output voltage (exclude
+5V standby). As
logic level is low,
output voltage would
enable. As logic
logic level is high,
output voltage would
disable. |
OVERALL PERFORMANCE:
Efficiency:
68% typical @ 125VDC
full load
Power Good Signal: On
delay 100ms~500ms, off
delay 1ms
Short Circuit Protection
(SCP): +5V,
-5V, +12V, -12V, +3.3V
Over Power Protection (OPP): Peak power protected to
130%±20% of
continuous rated power
(shutdown and latch off)
Over Voltage Protection
(OVP): +5V:
5.7V~6.5V, +3.3V:
3.9V~4.3V, +12V:
13.6V~15V
ENVIRONMENTAL
SPECIFICATIONS:
Cooling:
One 80mm
DC fan with ball bearing
Operating Temperature:
0°C~+50°C, +60°C
at half power
Operating Humidity:
20%~95% RH
(non-condensing)
Storage Temperature:
-10°C~+70°C
Storage Humidity:
10%~90% RH (non-condensing)
RELIABILITY:
MTBF:
>75,000
hours @ max. load & 25°C ambient
Safety Standards:
Meet UL1950, CSA
22.2NO/950, TUV IEC 950
EMI Compatibility
(EMC):
FCC
Part 15 Class B, CISPR22
(EN55022) Class B (CE
mark)
Dielectric Isolation:
Input to output: 1500VAC
for 1 second,
Input to frame ground
1500VAC for 1 second
STANDARD OUTPUT CABLE
LENGTH:
530mm
or 20.87 inches
ENCLOSURE DIMENSIONS:
140(L) x 150(W) x 86(H)
mm
5.51(L) x 5.9(W) x
3.39(H) inches
NET WEIGHT:
2~2.3KG
4.4~5.07LB
|
