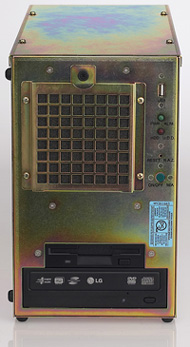

TR-MAX4 RELIABLE INDUSTRIAL PANEL MOUNT COMPUTER WITH SINGLE BOARD COMPUTER CAN BE USED AS A DESKTOP OR TOWER PC

TR-MAX4 RELIABLE INDUSTRIAL PANEL MOUNT COMPUTER WITH SINGLE BOARD COMPUTER CAN BE USED AS A DESKTOP OR TOWER PC

TR-MAX4 panel mount computer has robust industrial design, built from only top-quality, industrial-grade components. It has 6 slot backplane ISA/PCI expansion slots (only for TR-MAX4-P4 and TR-MAX4-C2D/C2Q) or 6 slot PCI/PCIe expansion slots and strong rigid structure of the metal chassis. The chassis, as well as all components, are RoHS Compliant. It can be used as a vertical tower, horizontal computer or a desktop.

Designed for use in power utilities, industrial process control and automation, the TR-MAX4 panel mount computer can be configured with a variety of power supply options: 110/220 VAC or 12, 24, 48, 125, 250 VDC. Excellent cooling and air flow characteristics ensures long-term reliability.

TR-MAX4 is available in 4 versions: TR-MAX4-i7/i5/Xeon, powered by Intel Core i7, i5 or Xeon up to 3.4GHz processor, TR-MAX4-P4, powered by Intel 3.0GHz Pentium 4 processor with 1MB Cache/800 FSB, TR-MAX4-C2D/C2Q, powered by Intel 3.0GHz Core 2 Duo or Core 2 Quad processors and TR-MAX4-IXP with Intel Core i7, i5 or dual eight core Xeon processors up to 3.4GHz and TR-MR2 SATA RAID1/0 redundant disk subsystem with SLIM CD-DVD-R/W . TR-MAX4-P4 and TR-MAX4-C2D/C2Q systems can be supplied with a full-size CD/DVD-RW, floppy drive and optional solid state drive. Two hard drives can be included with RAID1 ATA100 controller for redundant operation. Easily replaceable front fan filter protects system in dusty environments.

Standard features include 2 serial ports (one is RS232/422/485 selectable), printer port, 3 USB ports (5 USB ports for TR-MAX4-i7/i5/Xeon) (7 USB ports for TR-MAX4-IXP), SVGA output and Dual Gigabit Ethernet controller.

TR-MAX4 is designed for trouble free operation and ease of service. MTBF is 100,000 hours with a warranty of 3 years. TR-MAX4-P4 is compatible with all versions of QNX, LINUX, Windows 2000, XP and Windows NT. TR-MAX4-C2D/C2Q and TR-MAX4-IXP are compatible with all versions of QNX, LINUX, Windows 2000, XP, VISTA and Windows 7.

Longevity: guaranteed supply until 2020

Options Available:

  • High speed flash SATA SSD drives up to 512GBHigh speed flash SATA SSD drives up to 512GB
  • TR-MR2 RAID1/0 Redundant Disk Option with SLIM CD-DVD-R/W - 2 x MLC flash drives or 2 x 2.5" hard drives
  • SATA RAID1 Option up to 1TB
    Promise SATA RAID controller and two Seagate 7200RPM
    Constellation ES 24/7 hard drives
  • DC Power Supply Option
    DC 12, 24, 48, 125, 250V, 150W

Download TR-MAX4-P4 Panel Mount Computer w/ Intel P4 Processor Specifications

Download TR-MAX4-C2D/C2Q Panel Mount Computer w/ Intel Core 2 Duo or Core 2 Quad Processor Specifications

Download TR-MAX4-i7/i5/Xeon Panel Mount Computer w/ Intel Core (i-Series) i7, i5 or Xeon Processor Specifications

TR-MAX4-IXP Server-Class Computer w/ Intel Core (i-Series) i7, i5 or Dual Eight Core Xeon Processor
