 Transduction.com | TR-LCD1500-ITX Rack or Panel Mount Half Fanless Industrial Computer With 15" TFT LCD Touch Screen | TR-LCD1500-ITX is the most economical solution for a high quality industrial workstation.  TR-LCD1500-ITX rack and panel computers are readily available from stock. Warranty is 3 years.

TR-LCD1500-ITX is a new and reliable panel/rack half fanless industrial computer.  It has a large 15" LCD screen with resolution of 1024 x 768 and matching resistive or capacitive touch screen.  The computer includes embedded Intel ATOM 1.6GHz processor with no processor fan, 2GB DDR RAM memory and 2.5" SATA solid state drive.

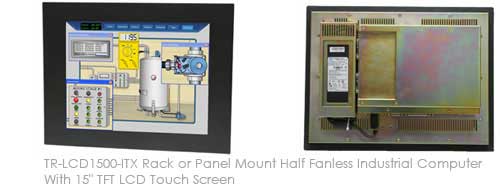

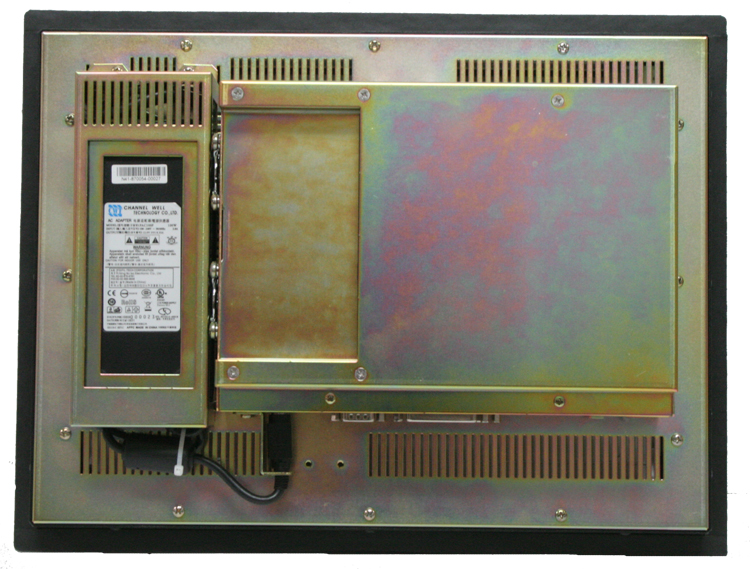

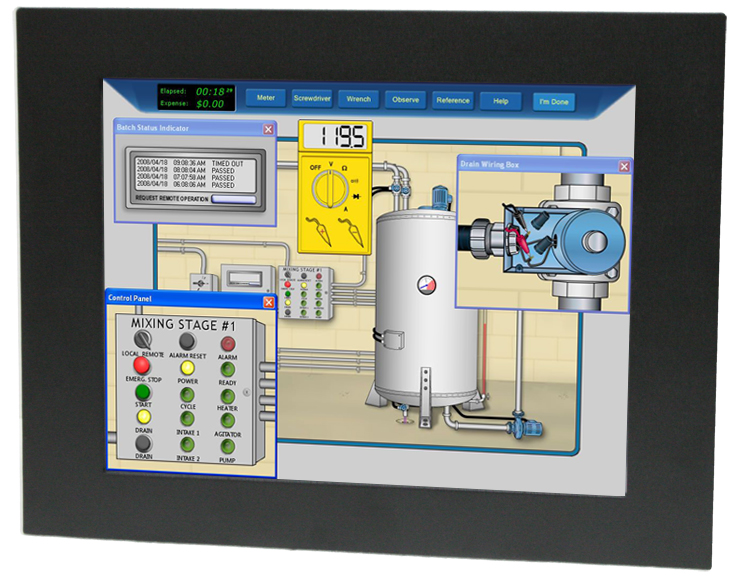

TR-LCD1500-ITX Rack or Panel Mount Half Fanless Industrial Computer With 15" TFT LCD Touch Screen

Click on photos for expanded images

Email

TR-LCD1500-ITX SpecificationsTR-LCD1500-ITX Specifications

TR-LCD1500-ITX-PM Panel Cutout PDF DrawingTR-LCD1500-ITX-PM Panel Cutout PDF Drawing



TR-LCD1500-ITX-PM Panel Cutout AUTOCAD 14.dwg Drawing

TR-LCD1500-ITX User ManualTR-LCD1500-ITX User Manual

Download TR-LCD1500-ITX Drivers

TR-LCD1500-ITX is a new and reliable panel/rack half fanless industrial computer.  It has a large 15" LCD screen with resolution of 1024 x 768 and matching resistive or capacitive touch screen.  The computer includes embedded Intel ATOM 1.6GHz processor with no processor fan, 2GB DDR RAM memory and 2.5" SATA solid state drive.

TR-LCD1500-ITX comes with Dual Gigabits LAN, 4 x USB 2.0, 2 x COM and 1 x LPT ports.  Input power options include 110/220 VAC and 125 and 250 VDC.  Operating temperature is 0 ~ 60C (32 ~ 140F) at full software load with 2 redundant slowed down ball bearing fans.

Price of the TR-LCD1500-ITX is US $1575 for a complete system including 2GB of memory and 64GB Flash SATA SSD with optional CD-DVD/RW and resistive or capacitive touch screen.

TR-LCD1500-ITX is the most economical solution for a high quality industrial workstation.  TR-LCD1500-ITX rack and panel computers are readily available from stock. Warranty is 3 years.

Options:

Touch screen option - resistive or capacitiveTouch screen option - resistive or capacitive

TR-MS - Angled Desktop Stand for 15" and 19" panel mount monitors and computers.

Similar products:

TR-LCD1900-ITX with 19" LCD Touch Screen and Intel ATOM 1.6GHz Processor

TR-7190 AC or DC Input Panel/Rack Mount Computer w/ 19" LCD Display and Intel Core i-Series Processor

TR-7001 AC or DC Input Panel/Rack Mount Computer w/ 15" LCD Display and Intel Core i-Series Processor

TR-6190 AC or DC input Panel/Rack Mount Computer with 19" LCD Touch Screen and Intel Core 2 Duo or Core 2 Quad Processor

TR-5915 AC or DC input Fanless Computer with 15" LCD Touch Screen and Intel ATOM 1.6GHz Processor

TR-5195F AC or DC input Fanless Computer with 19" LCD Touch Screen and Intel ATOM 1.6GHz Processor

TR-5190 AC or DC input Panel/Rack Mount Computer with 19" LCD Touch Screen and Intel P4 3.0GHz Processor

TR-5001 AC or DC input Panel/Rack Mount Computer with 15" LCD Touch Screen and Intel P4 3.0GHz Processor
