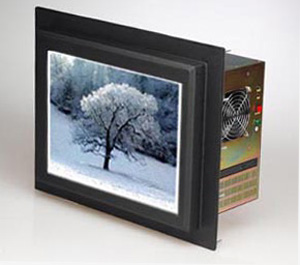

TR-5001 NEMA 4X PANEL  PC

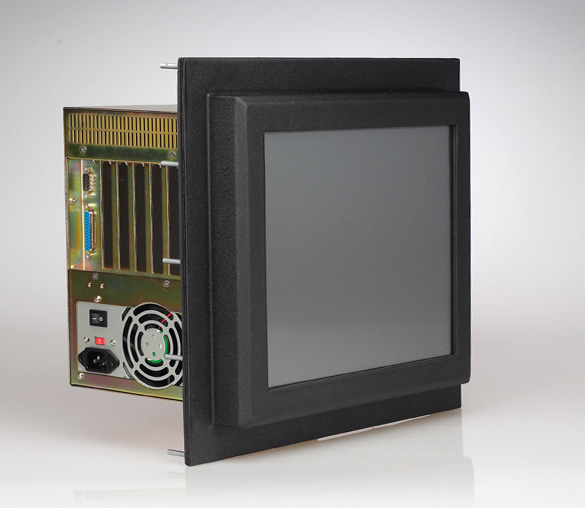

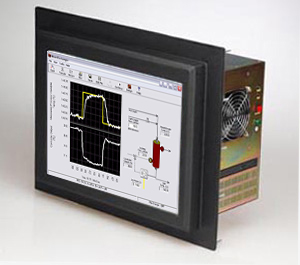

TR-5001 NEMA 4X PANEL PC with 15" LCD TOUCH SCREEN
Click on photo for expanded image

Download TR-5001 Panel PC Specifications

Download TR-5001 Touch Screen Driver for Windows 2K/XP

Download TR-5001 Touch Screen Driver for QNX

TR-5001 User's Manual
Please contact us to request this manual


Reliable, well-priced workstation with Single Board Computer for trouble free operation and tough LCD Touch Screen

Designed for use in power utilities, industrial process control and automation, TR-5001 Panel PC can be configured with a variety of power supply options: 110/220 VAC or 12, 24, 48, 125, 250 VDC.

We have the toughest touch screen! There is no known chemical that will dissolve our touch screen at room temperature. The only chemical that will affect our screen is meta cresol at 50°C or higher. Operating temperature range of TR-5001 is 0°C to 50°C.

This high performance panel mount computer will accommodate Intel Pentium 4 or Celeron processors up to 3.6 Ghz and up to 2GB DDR memory. Dual LAN with  Intel Pro1000+. Other features include slim CD-ROM*, RS-232 and RS-485 serial ports, printer port, up to 4 USB 2.0 ports, solid state disk or hard drive. Two hard drives can be included with optional RAID1 ATA/100 controller for redundant operation.
*Slim DVD-ROM/CD-RW drive option is available.

TR-5001 Panel PC is available from stock at US $2150, including LCD/TFT touch screen, Intel Celeron 2.6GHz processor, 256MB DDR memory and 40GB HD. Windows or Linux O/S is an option.

Additional Options Available:

  • 9U Rack Mount Adapter Bracket  $75
    Allows the TR-5001 to be mounted in a standard 19" rack configuration
    NOTE: It is recommended that the Rear Access Floppy/CD Option is also used when using the Rack Mount Adapter Bracket
  • Rear Access Floppy/CD Option  $75
    Provides 3 rear accessible drive bays:
      1 x 5.25" for slim 24x CD-ROM
      2 x 3.5" for Floppy Drive and Hard Drive
  • Wall Mount Bracket  $125
    For Mounting the TR-5001 directly on to any wall space
  • IDE RAID1 Option
    Promise IDE RAID controller and two Seagate 7200RPM Barracuda hard drives
  • Slim DVD-ROM 8x / CD-RW 24x24x24 drive instead of slim 24x CD-ROM
  • QNX version with ATI RADEON SVGA card

Similar products:  TR-5190 with 19" LCD touch screen
