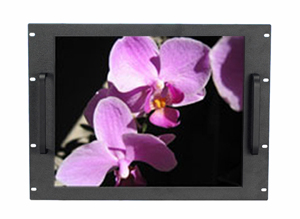

Transduction | NEMA | TR-LCD2010 20.1" Rack or Panel Mount Industrial TFT LCD Monitor With AC or DC Input Power | Reliable AAA LG 20.1" TFT LCD monitor with 1600 x 1200 resolution in an industrial rack mount or panel mount enclosure. NEMA 4 epoxy coated finish over steel. Optional stainless steel version. Optional resistive touch USB. Applications: Industrial process control, Commercial airlines, Military COTS, GPS Systems.

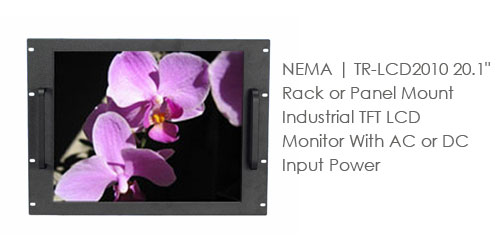

NEMA | TR-LCD2010 20.1" Rack or Panel Mount Industrial TFT LCD Monitor With AC or DC Input Power

Download TR-LCD2010 Specifications

TR-LCD2010-PM Panel Cutout PDF Drawing

TR-LCD2010-PM Panel Cutout AUTOCAD 14.dwg Drawing

Download USB Touch Screen Driver for Windows 7, 2K, XP and VISTA

Reliable AAA LG 20.1" TFT LCD monitor with 1600 x 1200 resolution in an industrial rack mount or panel mount enclosure. NEMA 4 epoxy coated finish over steel. Optional stainless steel version. Optional resistive touch USB. Applications: Industrial process control, Commercial airlines, Military COTS, GPS Systems.

Features:

Resolution 1600 x 1200
Viewable area 20.1"
Resistive touch screen or safety glass
Brightness 300 cd/m2
Contrast ratio 800:1
Color depth 8-bits, 16,777,266 colors
Viewing angle (H/V) 178/178
Response time 16ms
Pixel pitch 0.255mm
Input power 100-240V AC or 18V DC, optional 24V & 48V DC, 125V & 250V DC

OSD (On-Screen Display) Controls: Allow you to quickly and easily adjust elements of your screen image with simple to use on-screen menus: English, French, Italian, German, Spanish.

Full Scan Capability: Allows you to use the entire screen area.

Plug and Play: The Microsoft solution with the Windows 95/98/ME/2000/XP/Vista operating systems facilitates setup and installation by allowing the monitor to send its capabilities (such as screen size and resolutions supported) directly to your computer, automatically optimizing display performance.

Options:

Touch screen option - resistive

TR-LCD-24VDC and TR-LCD-48VDC - Fanless 24VDC and 48VDC input power option.

Power Saving Mode: Backlight can be turned off to extend useful life of lamps.

Ordering Information:

TR-LCD2010-RM Rack Mount LCD Version
TR-LCD2010-PM Panel Mount LCD Version
