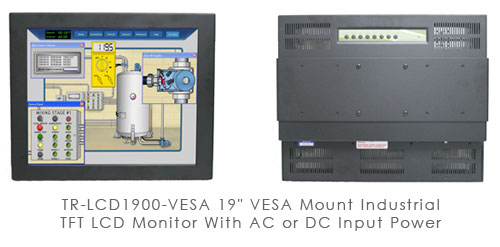

TR-LCD1900-VESA 19" VESA Mount Industrial TFT LCD Monitor With AC or DC Input Power

Email

Download TR-LCD1900-VESA Specifications

Download TR-LCD1900-VESA Mechanical Drawings

Download USB Touch Screen Driver for Windows 7, 2K, XP and VISTA

TR-LCD1900-VESA is a derivative of the reliable line of LCDXXXX series of Transduction industrial monitors.



Unlike our Rack Mount or Panel Mount monitors that have housing made of steel this unit has housing made of aluminum for lighter weight – only (7kg) 15.4 pounds. It’s enclosure was specifically designed for lighter weight for mounting on VESA type 4” x 4” arms.



Powered by a mighty FLI5968H-LF multifunction video controller chip from STMicroelectronics it can synchronize with any computer without need for special video drivers.



The video inputs include SVGA, DVI, S-Video and NTSC or PAL video on RCA jack.



OSD controls include AUTO button to synchronize monitor with the computer only one time – there is no need for special video drivers.



This VESA type monitor can be supplied with resistive touch screen or safety glass. Special version is available for wide angle (178 degrees) view. Front panel is protected against liquid spills with neoprene gasket.



Very reliable design – MTBF based on field records is over 100,000 hours. Sturdy design can withstand high levels of vibration and seismic shocks. Optional ball type VESA mount can be provided for solid mounting on the wall or moving arm.



Totally fanless design will not draw in vaporized liquids or dust. Finish is durable baked powder epoxy paint that can be cleaned with a variety of popular detergents including Palmolive and Windex or just water with soap.



This monitor is manufactured under strict QA program with revision control of all parts. Long term supply item with longevity of 10 years.

TR-LCD1900-VESA can be supplied from stock with variety of power options: universal AC 50/60 Hz or 12, 24, 48, 125 or 250 VDC input power. Power consumption is only 35W.



For additional information on a standard or customized monitor and detailed quote please email sales@transduction.com
